Motorola P25 Portable Radios

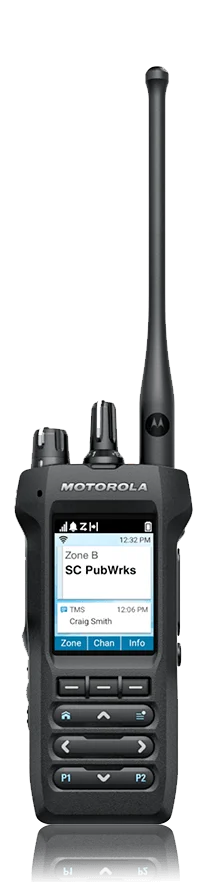

Motorola APX N30

APX N30 connects your teams in public works or other municipal roles to reliable P25 radio communications with all the essential features they need and nothing they don’t ﹘ delivering APX performance in a pared down, cost effective package.

Protocols And Systems Supported

Digital Conventional: 9600 Baud APCO P25 phase 1 FDMA and phase 2 TDMA, Digital Conventional: APCO 25, Analog Conventional: 3600 Baud SmartNet®, SmartZone®, Omnilink®, Analog Conventional: MDC 1200, ASTRO® 25 Integrated Voice and Data, SmartConnect via W-iFi. Standard Channels 512

Supported Frequencies

700/800 MHz (762-776, 792-806, 806 - 824, 851 - 870)

Encryption Capability

AES 256-bit Software Encryption (AES-256), DES-OFB

Applications

GPS, Integrated Voice and Data, Enhanced Data, Voice Announcement

Specifications Sheet

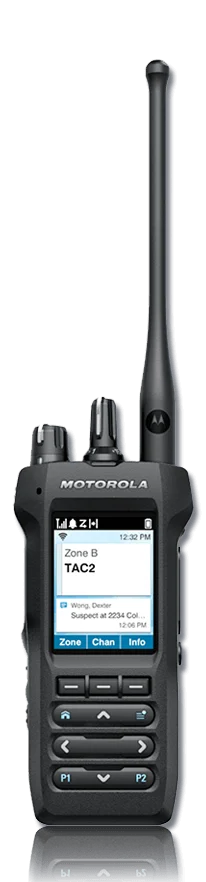

Motorola APX N50

APX N50 is a slim yet tough pick-up-and-go radio that’s designed to give first responders, public-safety support and administrative staff secure communications they can rely on in the field

Protocols And Systems Supported

Digital Trunking: 9600 Baud APCO P25 phase 1 FDMA and phase 2 TDMA, Digital Conventional: APCO 25, Analog Conventional: 3600 Baud SmartNet®, SmartZone®, Omnilink®, Analog Conventional: MDC 1200, ASTRO® 25 Integrated Voice and Data, SmartConnect via W-iFi1. Standard Channels 1000

Supported Frequencies

700/800 MHz (762-776, 792-806, 806 - 825, 851 - 870)

Encryption Capability

ADP, AES-256, DES, DES-XL, DES-OFB, DVP-XL, Localized Algorithm

Applications

GPS, Integrated Voice and Data, Enhanced Data, Voice Announcement

Specifications Sheet

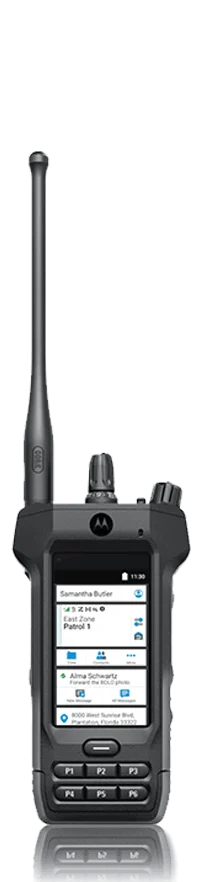

Motorola APX N70

APX N70 combines the best audio possible with sophisticated features in a rugged design. Access radio details in three ways - voice, touchscreen or hard controls. Expand intelligence in the field via optional LTE and smart applications.

Protocols And Systems Supported

Digital Trunking: 9600 Baud APCO P25 phase 1 FDMA and phase 2 TDMA, Digital Conventional: APCO 25 Analog Conventional: 3600 Baud SmartNet®, SmartZone®, Omnilink®, Analog Trunking: MDC 1200, ASTRO® 25 Integrated Voice and Data, SmartConnect Multi-net Connectivity. Standard Channels 3000

Supported Frequencies

700/800 MHz (762-776, 792-806, 806 - 825, 851 - 870)

Encryption Capability

ADP, AES-256, DES, DES-XL, DES-OFB, DVP-XL, Localized Algorithm

Applications

GPS, Integrated Voice and Data, Enhanced Data, Voice Announcement

Specifications Sheet

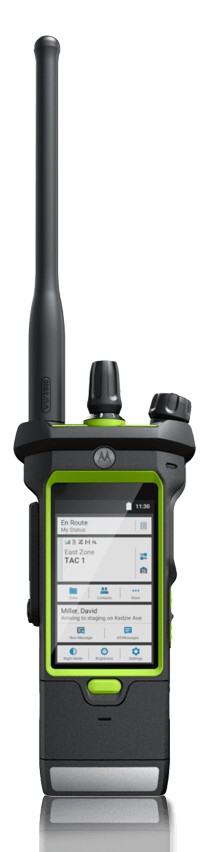

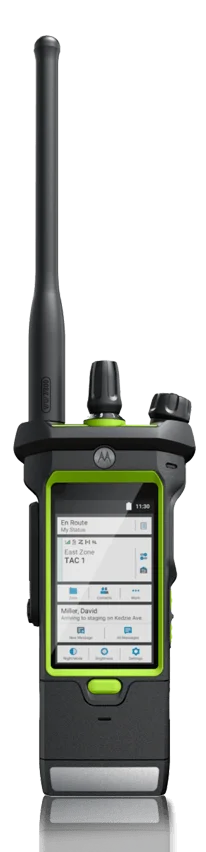

Motorola APX Next XN

Everyday challenges can unexpectedly go from calm to chaos. The tools you carry must be as versatile as you are - ready for the unpredictable and unexpected. APX NEXT XN smart radio with the XVN500 RSM brings unprecedented durability and mobilized intelligence to your lifeline so you can outperform whatever the day throws at you.

Available in Multi-Band and Single-Band Configurations

Protocols And Systems Supported

Digital Trunking: 9600 Baud APCO P25 phase 1 FDMA and phase 2 TDMA, Digital Conventional: APCO 25, Analog Trunking: 3600 Baud SmartNet®, SmartZone®, Omnilink®, Analog Trunking: MDC 1200, ASTRO® 25 Integrated Voice and Data, SmartConnect Multi-net Connectivity. Standard Channels 3000

Supported Frequencies

VHF (136 - 174), UHFR1 (380 - 470), UHFR2 (450 - 520), 700 MHz (762-776, 792-806 MHz), 800 MHz (806-825, 851-870)

Encryption Capability

ADP, AES, DES, DES-XL, DES-OFB, DVP-XL, Localized Algorithm

Applications

GPS, Integrated Voice and Data, Enhanced Data, Voice Announcement

Specifications Sheet

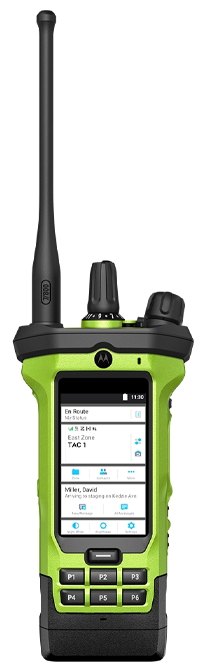

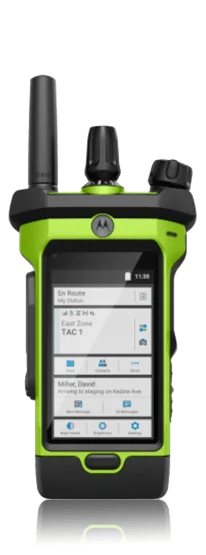

Motorola APX Next XE

The demands of a call require you to adapt and overcome all obstacles. When your focus on the call is threatened, other lives and your crew may be threatened. APX NEXT XE protects your focus when it matters most. Combining glovable oversized controls with accelerated workflows and streamlined interfaces give you reliable use of your lifeline in extreme environments. Stay focused on what matters – your call, your firefighters, and your safety.

Protocols And Systems Supported

Supported Frequencies

VHF (136 - 174), UHFR1 (380 - 470), UHFR2 (450 - 520), 700/800 MHz (764 - 870), 900 MHz (896 - 901, 935 - 940)

Encryption Capability

ADP, AES, DES, DES-XL, DES-OFB, DVP-XL, Localized Algorithm

Applications

GPS, Integrated Voice and Data, Enhanced Data, Voice Announcement

Specifications Sheet

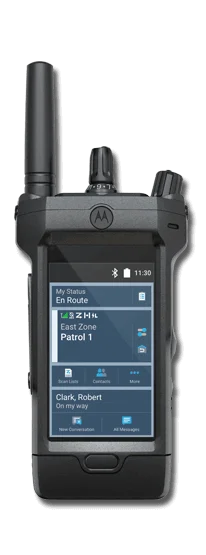

Motorola APX Next

In public safety, focus is your greatest resource. APX NEXT protects your focus when it matters most. Available in single-band and multi-band configurations, the APX NEXT smart radio brings usability and performance advancements to every aspect of the police radio experience. Interfaces are streamlined. Workflows are accelerated. Mission-critical reliability is ensured. And the focus that keeps critical personnel safe and effective, is protected.

Protocols And Systems Supported

Supported Frequencies

VHF (136 - 174), UHFR1 (380 - 470), UHFR2 (450 - 520), 700/800 MHz (764 - 870), 900 MHz (896 - 901, 935 - 940)

Encryption Capability

ADP, AES, DES, DES-XL, DES-OFB, DVP-XL, Localized Algorithm

Applications

GPS, Integrated Voice and Data, Enhanced Data, Voice Announcement

Specifications Sheet

Motorola APX 900

The APX 900 is designed for public works, government services and education organizations who need essential communication at an affordable price. It delivers great core features, with an efficiency-focused design – including Bluetooth® wireless connectivity.

Meets IP68 Environmental Specifications.
Available in models 2 and 3.

Protocols And Systems Supported

Dynamic Dual Mode (FDMA/TDMA), Analog Conventional, P25 Phase I (FDMA) Conventional and Trunking, P25 Phase II (TDMA) Trunking, Smart Net/Smart Zone Analog and Digital Trunking, MDC-1200 Analog Signaling, Standard Channels 512

Supported Frequencies

VHF (136 - 174), UHFR1 (380 - 470), UHFR2 (450 - 520), 700/800 MHz (764 - 776, 794 - 806, 806 - 824, 851 - 870), 900 MHz (896 - 902, 935 - 941)

Encryption Capability

AES-SW, Multi-key 48, ADP (SW Only), Radio Authentication, POP 25

Applications

GPS, Integrated Voice and Data, Enhanced Data, Voice Announcement

Specifications Sheet

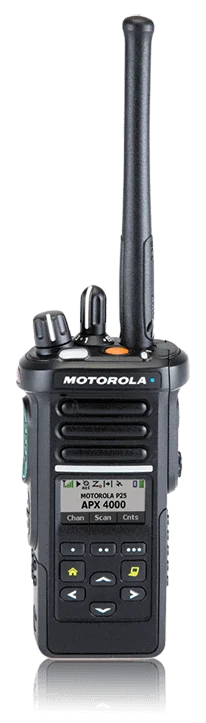

Motorola APX 4000

Durable and compact with key features in an easy to use design, the APX 4000 is ideal for agencies requiring a budget friendly P25 Phase 2 solution.

Dedicated Dual Knob for volume and channel controls.
Offered in black housing only.

Protocols And Systems Supported

Supported Frequencies

VHF (136 - 174), UHFR1 (380 - 470), UHFR2 (450 - 520), 700/800 MHz (764 - 870), 900 MHz (896 - 901, 935 - 940)

Encryption Capability

AES and DES, Multi-key 48, ADP, Radio Authentication, POP 25

Applications

Mission Critical Wireless (Bluetooth), Mandown, GPS, Integrated Voice and Data, Enhanced Data, Voice Announcement

Specifications Sheet

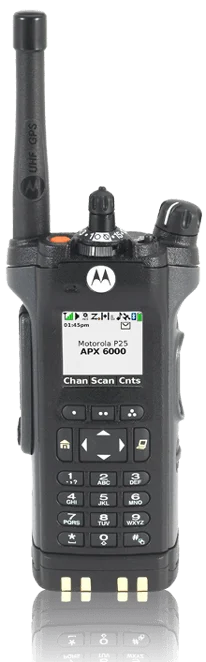

Motorola APX 6000

Delivering outstanding performance in a lightweight form factor, the APX 6000 is built for agencies requiring a single band solution with advanced features.

Economical single band solution for federal, and state and local public safety users.
Innovative T-grip design gives you a secure grip and better control.
Available in 3 models (Top and Front display with full DTMF keypad, Top and Front display with limited keypad and Top Display Only).

Protocols And Systems Supported

Supported Frequencies

VHF (136 - 174), UHFR1 (380 - 470), UHFR2 (450 - 520), 700/800 MHz (764 - 870)

Encryption Capability

AES and DES, Multi-key 64, ADP, Radio Authentication, POP 25, P25 OTAR

Applications

Mission Critical Wireless (Bluetooth), Mandown, GPS, Integrated Voice and Data, Enhanced Data, Voice Announcement

Specifications Sheet

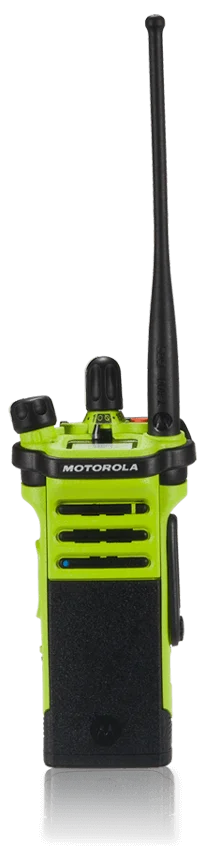

Motorola APX 6000XE

Designed for gloved users working in extreme environments with exaggerated ergonomics and rugged specifications, the APX 6000XE is ideal for agencies requiring advanced features in a smaller, single-band form factor.

Single band with extreme ergonomics and excellent audio.
Extreme 1-sided noise reduction designed to locate the talker while canceling out ambient noise.
Equipped with a unique speaker grill design that improves water runoff.

Protocols And Systems Supported

Supported Frequencies

VHF (136 - 174), UHFR1 (380 - 470), UHFR2 (450 - 520), 700/800 MHz (764 - 870)

Encryption Capability

AES and DES, Multi-key 64, ADP, Radio Authentication, POP 25, P25 OTAR

Applications

Mission Critical Wireless (Bluetooth), Mandown, GPS, Integrated Voice and Data, Enhanced Data, Voice Announcement

Specifications Sheet

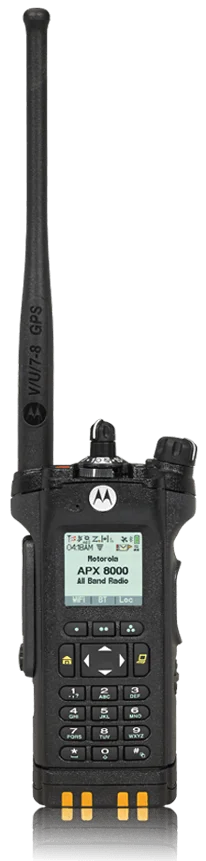

Motorola APX 8000

Providing unlimited mobility and seamless WiFi connectivity, the APX 8000 multi-band radio places instant interoperability into the hands of mission-critical first responders.

All-Band to enable communications across multiple agencies
WiFi for quicker wireless and codeplug updates
Adaptive Audio Engine to provide better audio experience in any environment

Protocols And Systems Supported

Multi-Band Capable, Dynamic Dual Mode (FDMA/TDMA), Analog Conventional, P25 Phase I (FDMA) Conventional and Trunking, P25 Phase II (TDMA) Trunking, Smart Net/Smart Zone Analog and Digital Trunking, 3600 and 9600, MDC-1200 Analog Signaling, Standard Channels 3000

Supported Frequencies

VHF (136 - 174), UHFR1 (380 - 470), UHFR2 (450 - 520), 700/800 MHz (764 - 870)

Encryption Capability

AES and DES, Multi-key 128, ADP, Radio Authentication, POP 25, P25 OTAR

Applications

Mission Critical Wireless (Bluetooth), Option Board/Expanded Mem, Mandown, GPS, Integrated Voice and Data, Enhanced Data, Voice Announcement

Specifications Sheet

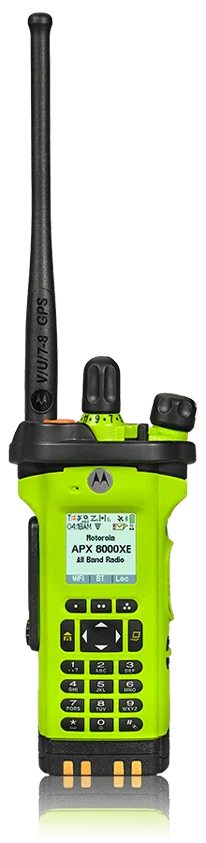

Motorola APX 8000XE

The APX 8000XE is redefining mission critical communications by delivering an intrinsically safe radio that combines unlimited mobility, loud audio and secure WiFi connectivity for safety personnel in extreme environments.

All-band to enable communications across multiple agencies.
WiFi for quicker wireless and codeplug updates.
Adaptive Audio Engine to provide better audio experience in any environment.
2m/4h submersion and intrinsically safe standard for extreme conditions.

Protocols And Systems Supported

Supported Frequencies

VHF (136 - 174), UHFR1 (380 - 470), UHFR2 (450 - 520), 700/800 MHz (764 - 870)

Encryption Capability

AES and DES, Multi-key 128, ADP, Radio Authentication, POP 25, P25 OTAR

Applications

Mission Critical Wireless (Bluetooth), Option Board/Expanded Mem, Mandown, GPS, Integrated Voice and Data, Enhanced Data, Voice Announcement

Specifications Sheet
