Motorola P25 Mobile Radios

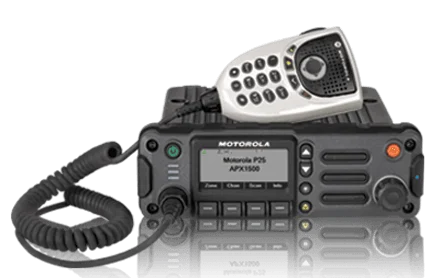

Motorola APX 1500

Compact, easy-to-install dash mount design with basic features, the APX 1500 is ideal for local government and public works users needing a budget-friendly P25 mobile solution.

Flexible, space-saving design for easier installation
Compatible with O2 control head for intuitive operation
Standard APX features (ie. intelligent lighting, dual-mic noise suppression, ADP privacy)

Control Heads

Compatibility: O2
Max. # of Control Heads: 1
Rugged (IP Rating): IP:54

Protocols And Systems Supported

Dynamic Dual Mode (FDMA/TDMA), Analog Conventional, P25 Phase I (FDMA) Conventional and Trunking, P25 Phase II (TDMA) Trunking, Smart Net/Smart Zone Analog and Digital Trunking, 9600 Only, MDC-1200 Analog Signaling, Standard Channels 512

Mounting Options

Dash Mount & Control Station

Supported Frequencies

VHF (136 - 174), UHFR1 (380 - 470), UHFR2 (450 - 520), 700/800 MHz (764 - 870)

Encryption Capability

ADP, ADP, POP 25

Applications

Integrated Voice and Data, Integrated GPS - Outdoor Location, Radio Authentication, Voice Announcement

Specifications Sheet

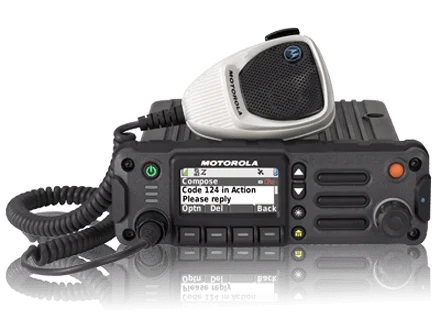

Motorola APX 4500

Durable with basic features, the APX 4500 is ideal for public works, utilities and natural resources customers requiring a rugged P25 mobile solution.

Compatible with rugged O2 Control Head, designed for extreme environments.
Durable IP56 certified form factor.
Leverage XTL accessories for O5 and O3 control heads to maximize your investment.

Control Heads

Compatibility: O2
Max. # of Control Heads: 1
Rugged (IP Rating): IP56

Protocols And Systems Supported

Dynamic Dual Mode (FDMA/TDMA), Analog Conventional, P25 Phase I (FDMA) Conventional and Trunking, P25 Phase II (TDMA) Trunking, Smart Net/Smart Zone Analog and Digital Trunking, 3600 or 9600, MDC-1200 Analog Signaling, Standard Channels 512

Mounting Options

Dash Mount, Remote Mount & Control Station

Supported Frequencies

VHF (136 - 174), UHFR1 (380 - 470), UHFR2 (450 - 520), 700/800 MHz (764 - 870), 900 MHz (896 - 901, 935 - 940)

Encryption Capability

AES and DES, Multi-key 48, ADP, POP 25

Applications

Integrated Voice and Data, Enhanced Data, Integrated GPS - Outdoor Location, Radio Authentication, Voice Announcement

Specifications Sheet

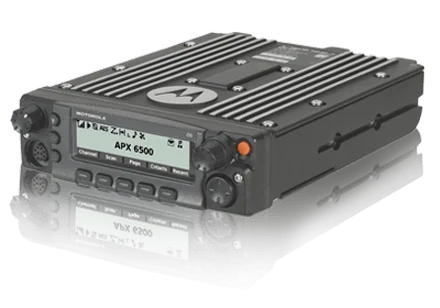

Motorola APX 6500

A complete solution for mission critical responders, the APX 6500 was built for first responders that need advanced features in a single band form factor.

Single-band capable and supports dual radio operation with APX 7500.
Mid-power model fits into any existing XTL footprint, so you can reuse mounting holes and cables.
RFID label helps you track mobile radio information without uninstalling.

Control Heads

Compatibility: O2, O3, O5, O7, O9
Max. # of Control Heads: 2
Rugged (IP Rating): IP54

Protocols And Systems Supported

Dynamic Dual Mode (FDMA/TDMA), Analog Conventional, P25 Phase I (FDMA) Conventional and Trunking, P25 Phase II (TDMA) Trunking, Smart Net/Smart Zone Analog and Digital Trunking, 3600 and 9600, MDC-1200 Analog Signaling, Standard Channels 1000

Mounting Options

Dash Mount, Remote Mount & Control Station

Supported Frequencies

VHF (136 - 174), UHFR1 (380 - 470), 700/800 MHz (764 - 870)

Encryption Capability

AES and DES, Multi-key 64, ADP, POP 25, P25 OTAR

Applications

Integrated Voice and Data, Enhanced Data, Integrated GPS - Outdoor Location, Radio Authentication, Voice Announcement, Dual Radio Capability

Specifications Sheet

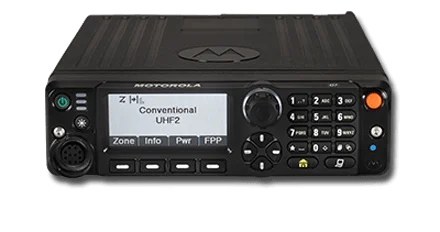

Motorola APX 8500

Achieve unlimited interoperability, secure WiFi connectivity and purpose-built design to enable ease of installation and removal with the APX 8500.

4-in-1 Radio: 7/800 MHz, VHF and UHF Range 1 and Range 2 bands.
Up to 20 WiFi Networks can be provisioned in the radio.
Intelligent Lighting uses three simple colors to alert users of critical radio events.

Control Heads

Compatibility: O2, O3, O5, O7, O9
Max. # of Control Heads: 4
Rugged (IP Rating): IP54

Protocols And Systems Supported

Multi-Band Capable, Dynamic Dual Mode (FDMA/TDMA), Analog Conventional, P25 Phase I (FDMA) Conventional and Trunking, P25 Phase II (TDMA) Trunking, Smart Net/Smart Zone Analog and Digital Trunking, 3600 and 9600, MDC-1200 Analog Signaling, Standard Channels 3000

Supported Frequencies

VHF (136 - 174), UHFR1 (380 - 470), UHFR2 (450 - 520), 700/800 MHz (764 - 870)

Encryption Capability

AES and DES, Multi-key 128, ADP, POP 25, P25 OTAR

Applications

Integrated Voice and Data, Enhanced Data, Integrated GPS - Outdoor Location, Radio Authentication, Voice Announcement, Dual Radio Capability

Data Sheet

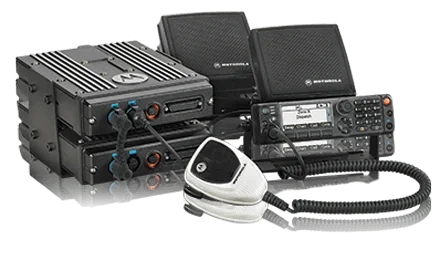

Motorola APX Dual

Whether you are responding to a fire call or rushing to a robbery or break in, you need continuous communication and the ability to monitor voice activity at all times. With the APX Dual Radio public safety first responders will be able to achieve complete interoperability all from the ease of a single O7 control head.

Multi-band interoperability at your fingertips
Simultaneous multiple channel monitoring
Priority channel scan is always available

Protocols And Systems Supported

Conventional, SmartZone Trunking, Analog, Digital, X2 TDMA

Supported Frequencies

VHF (136 - 174), UHFR1 (380 - 470), UHFR2 (450 - 520), 700/800 MHz (764 - 870)

Encryption Capability

AES, DES, DES-XL, DES-OFB, Advanced Digital Privacy (ADP)
